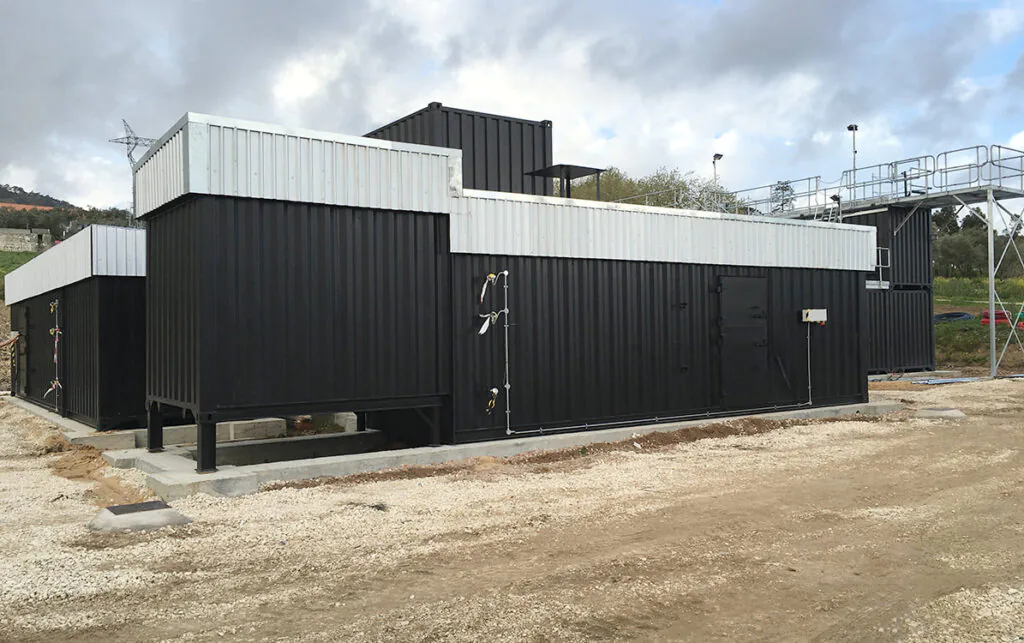

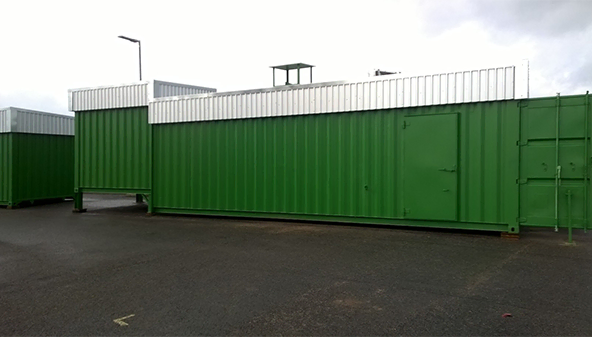

Demonstrator Units are designed to provide a safe demonstration and learning environment with the ability to initiate and sustain a carbonaceous fire. By controlling the release or containment of fire gases this will accurately simulate fire behaviour and development of a fire event.
Instructors can demonstrate the principles of combustion and compartment fire behaviour, how a fire develops and spreads and the appropriate extinguishing and cooling techniques to control it. Students are able to observe the process of pyrolysis, air tract and effects of under and over pressure.
They will also be able to experience the effects of radiated heat, lowering of the neutral plane and the effect on visibility. Signs and symptoms of ‘flashover’ can be identified including the ignition of fire gases.
Features include:
New 12m ISO shipping container.
Vented door frames fabricated from 100mm x 50mm RHS.
Vented doors from 50 x 50 x 3mm RHS.
Door skins fabricated from 3mm steel sheet with overlap to seal doors to frame.
Weatherstrip above doors to prevent water ingress.
Heavy duty rising butt hinges on doors.
Hold backs on all doors.
Roof strengthening over burn end with 60 x 60mm RHS and 6mm roof sheets.
Roof trusses and purlins from 50mm x 50mm x 3mm RSA.
Total sheeting of roof with box profile steel sheets and folded flashings to ensure fully water-tight roof.
Minerva Fuel Loading System.
Minerva Pulse Jet Filtration System.
